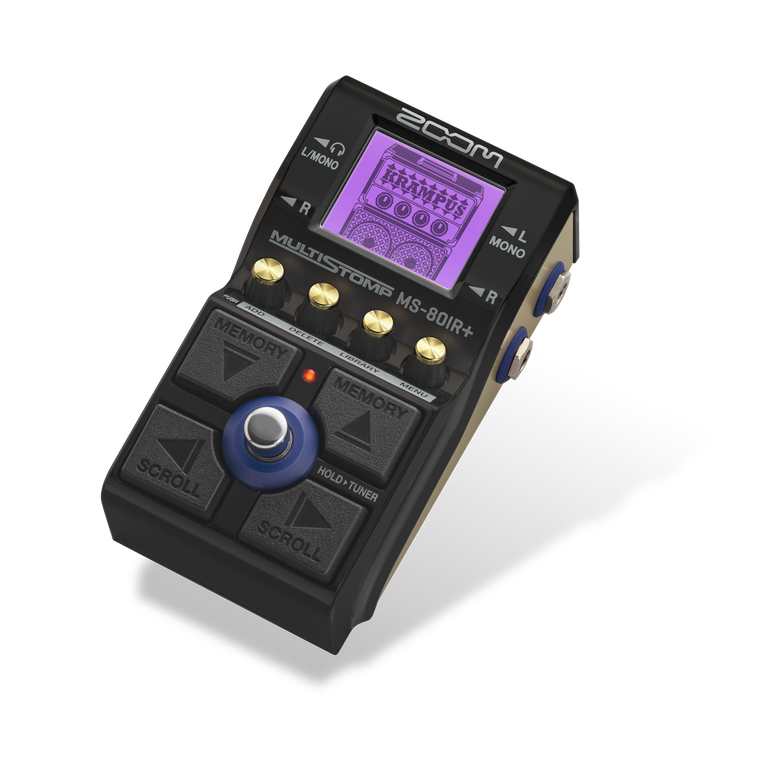

Zoom MS-80IR Multi-Player IR Pedal

Name: Zoom MS-80IR Multi-Player IR Pedal
Brand: Grays Custom Guitar Shop
Price: 189.99 CAD
Availability: InStock

$189.99

Sale Sold out

Shipping calculated at checkout.

Quantity

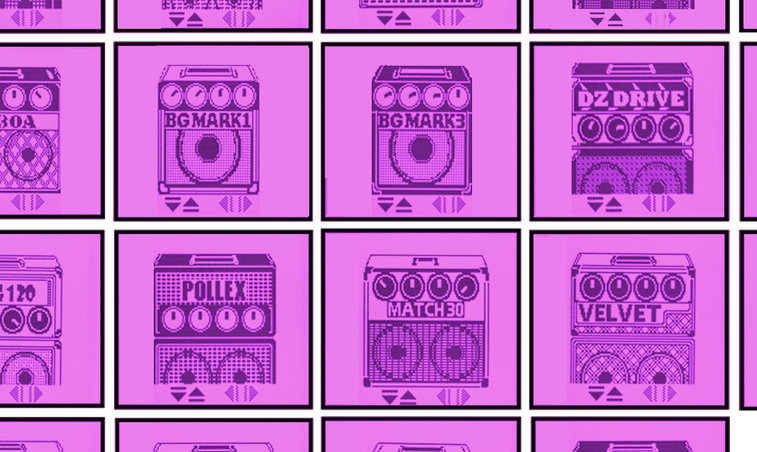

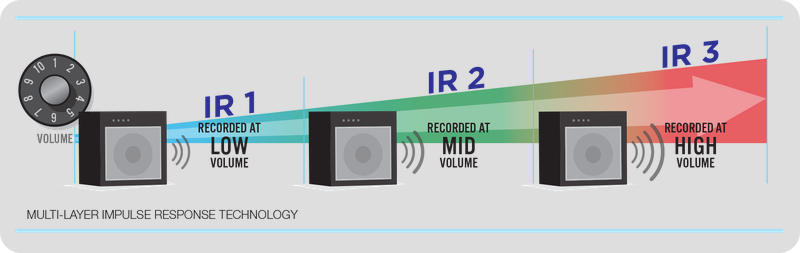

23 guitar Amp/Cabinet models developed with Multi-Layer IR technology

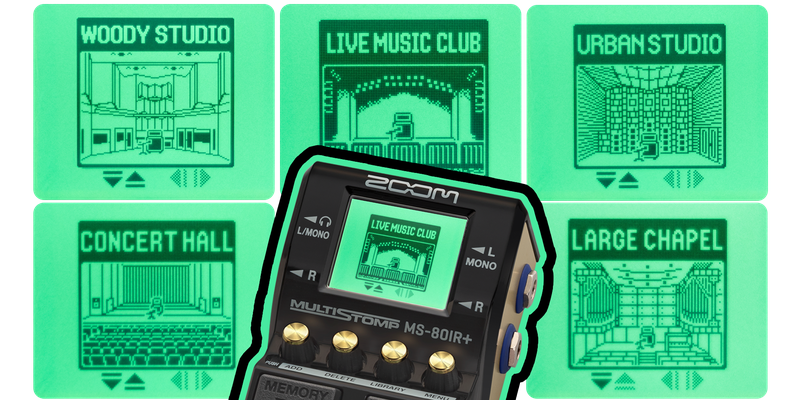

5 Studio Sounds effects to add natural reverb to your tone

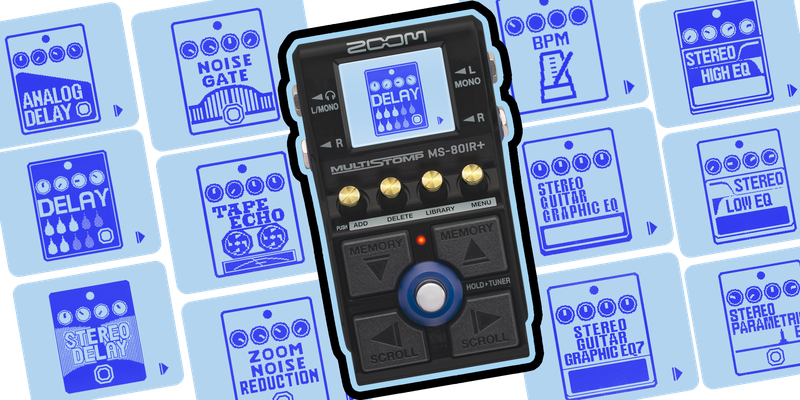

12 additional effects, including noise gates, EQ’s, and delays
Create and save 80 unique memory patches

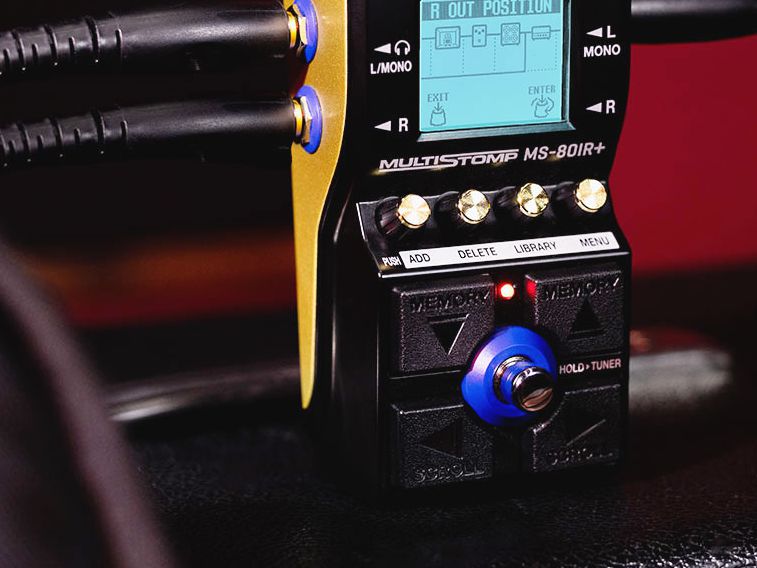

4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
Stereo input (both active and passive instruments supported)

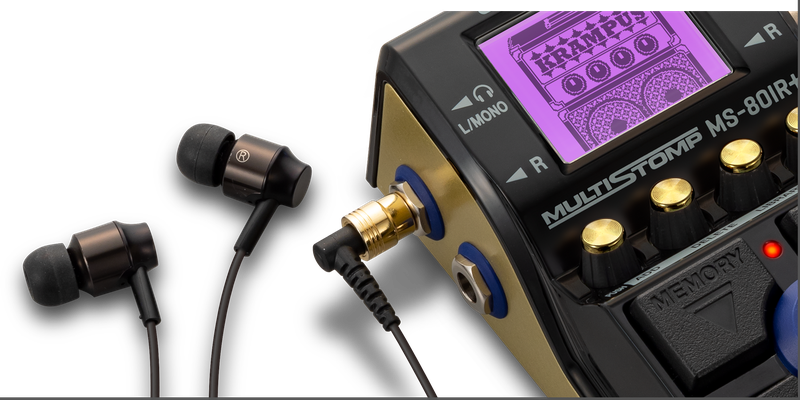

Stereo output for connection to amps, speaker or headphones
Output splitting lets you send signals with and without IR’s simultaneously
Chromatic tuner supports all standard guitar tunings, including open & drop tunings

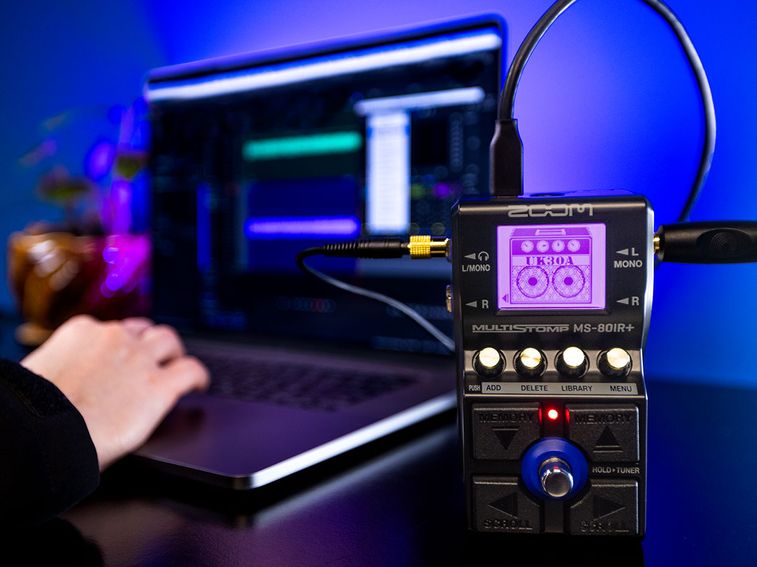

2-IN / 2-OUT Audio Interface function (via built-in USB-C port)
IR load function for speaker cabinet simulation
Runs on 2 AA batteries or AC Adapter
Handy Guitar Lab for MS-80IR+ App (iOS)

Specs

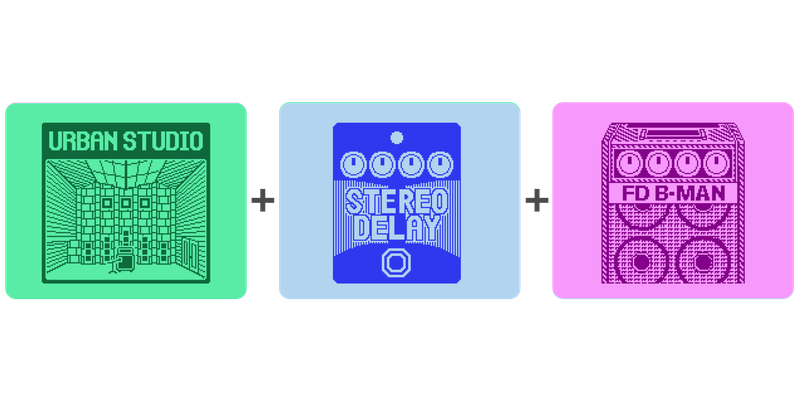

Maximum number of simultaneous eﬀects		1 amplifier, 1 studio ambience and 1 other effect
User patch memories		80
Sampling frequency		44.1 kHz
A/D conversion		24-bit 128× oversampling
D/A conversion		24-bit 128× oversampling
Signal processing		32-bit
Frequency response		20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
Display		160×128 dot-matrix LCD
Inputs	L / R	Standard mono phone jacks
		Rated input level: −20 dBu
		Input impedance (line): 470 kΩ
Outputs	L / MONO / Headphone	Standard stereo phone jacks (combined line/headphone)
		Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
		Maximum output level: 20 mW + 20 mW (when 32Ω load)
	R	Standard mono phone jacks
		Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
Input S/N		122 dB
Noise ﬂoor (residual noise)	L / R	–100 dBu

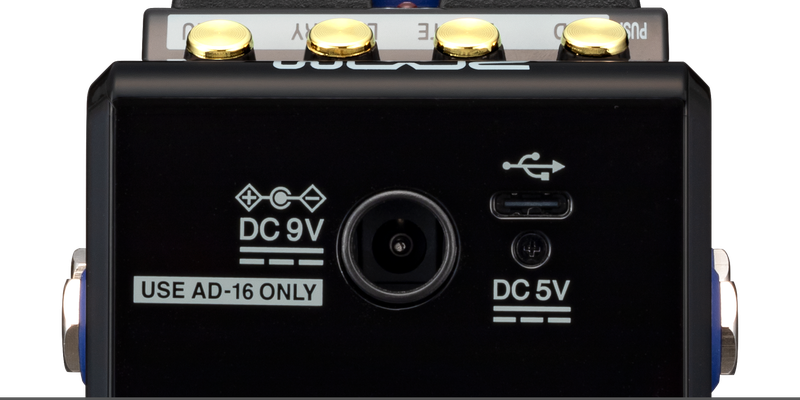

Power		AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
		2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
		• USB bus power is supported.
Estimated operation times using batteries		Alkaline batteries: about 3.5 hours (about 3 hours using stereo input)
		NiMH batteries (1900 mAh): about 4 hours (about 3.5 hours using stereo input)
		Lithium batteries: about 7.5 hours (about 6.5 hours using stereo input)
		• These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
USB		Port: USB 2.0 Type-C
		Supported cable type: Type-C
		Handy Guitar Lab: USB 1.1 Full Speed
		Audio interface: USB 2.0 Full Speed, 44.1kHz/32-bit, 2 in 2 out
		• Use a USB cable that supports data transfer.
Dimensions		133 mm (D) × 79 mm (W) × 61 mm (H)
Weight		369 g (excluding batteries)
		416 g (including batteries)
