Zoom MS-70CDR+

Zoom MS-70CDR+

$159.99
$159.99
Sale Sold out
Shipping calculated at checkout.



  • 140+ guitar and bass effects, including modulation, chorus, delay, and reverb
  • Use up to 6 effects at the same time
  • 100 Patch slots with 80 presets
  • Analog circuit with minimal sound deterioration
  • Single stompbox design
  • Stereo input and output supports effects like stereo chorus and delays
  • 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot
  • Improved UI for easier navigation and control
  • Color coded LCD backlight for selected effect category
  • Runs on 2 AA batteries or AC Adapter

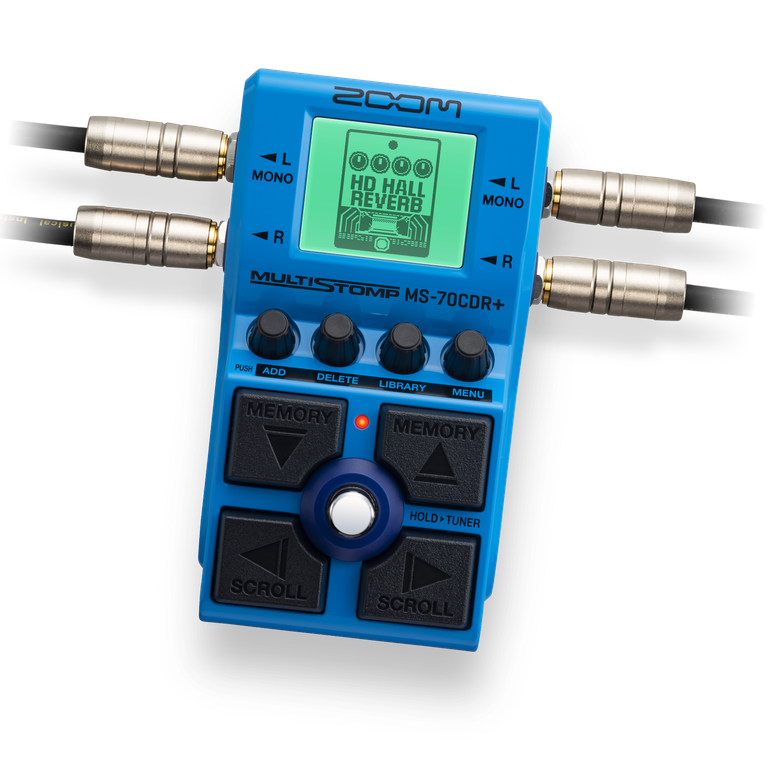

front view fo the MS-70CDR+

Specs

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS 6 effects
USER PATCH MEMORIES 100
SAMPLING FREQUENCY 44.1 kHz
A/D CONVERSION 24-bit 128× oversampling
D/A CONVERSION 24-bit 128× oversampling
SIGNAL PROCESSING 32-bit
FREQUENCY RESPONSE 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
DISPLAY 160×128 dot-matrix LCD
INPUTS L/R Standard mono phone jacks Rated input level: −20 dBu Input impedance (line): 470 kΩ
OUTPUTS L/R Standard mono phone jacks Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
INPUT S/N 122 dB
NOISE FLOOR (RESIDUAL NOISE) L/R –100 dBu
POWER AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
ESTIMATED OPERATION TIMES • These values are "approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions." Alkaline batteries: about 7 hours (about 5 hours using using batteries) NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input) Lithium batteries: about 14 hours (about 10 hours using stereo input)
USB Port: USB 2.0 Type-C / Supported cable type: Type-C Handy Guitar Lab: USB 1.1 Full Speed • Use a USB cable that supports data transfer. USB bus power is supported.
DIMENSIONS 133 mm (D) × 79 mm (W) × 61 mm (H)
WEIGHT 368 g (excluding batteries) 415 g (including batteries)
NOTE: 0 DBU = 0.775 V
