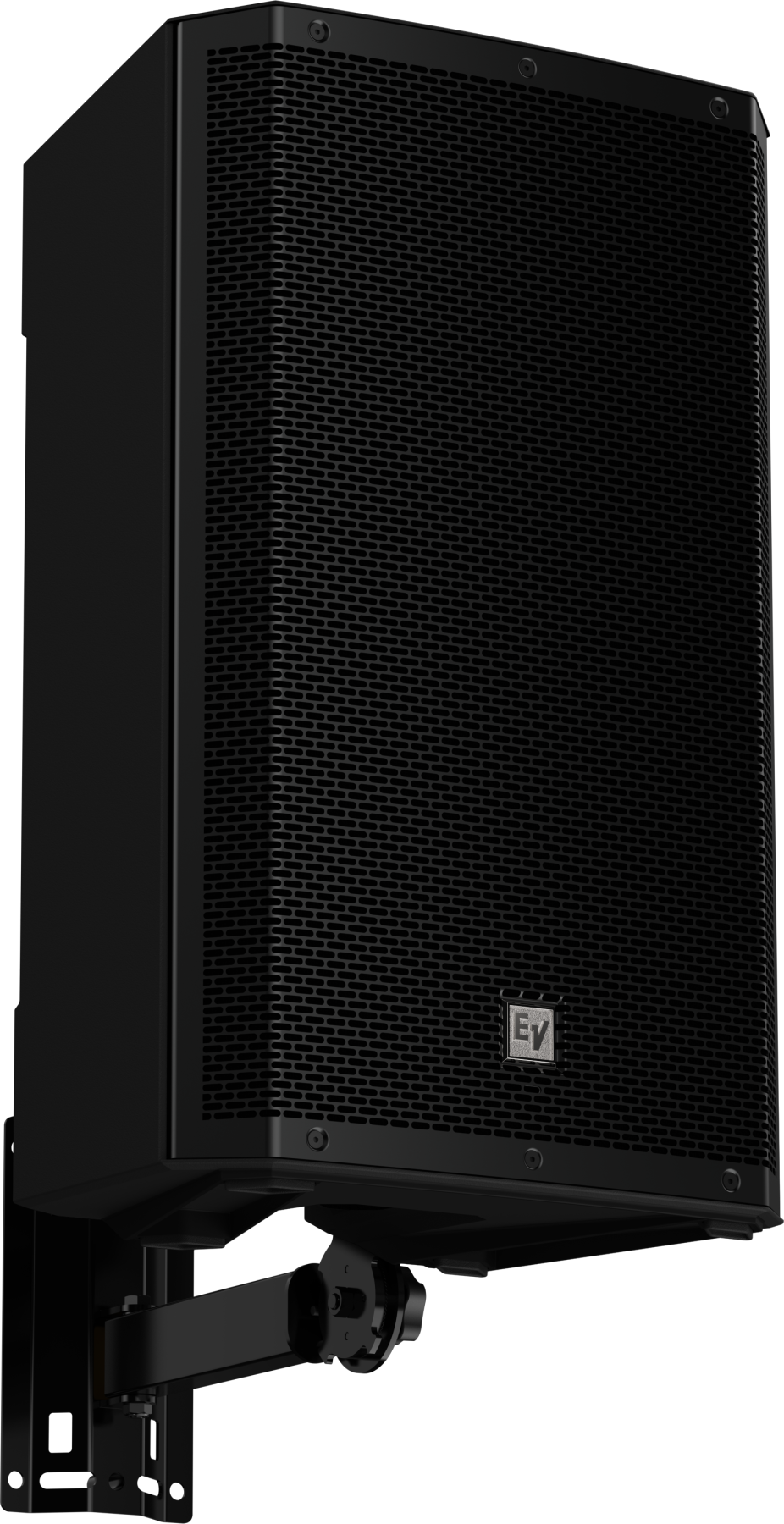

Electro-Voice BRKT-POLE WALL MOUNT BRACKET

Electro-Voice BRKT-POLE WALL MOUNT BRACKET

$99.00
Shipping calculated at checkout.

Reliable shipping

Flexible returns

  • Two different sizes available to suspend 8-inch to 15-inch loudspeakers.
  • The brackets allow for rotation, swivel and tilt adjustment to orient the loudspeaker properly.
  • Maximum downward tilt of 30 degrees and maximum upward tilt of 5 degrees, vertical surface mount only.
  • Made out of steel, in black.

BRKT-POLE-S is suitable for 8- and 10-inch speakers and some 12-inch speakers. BRKT-POLE-L is suitable for speakers up to 15 inches.

BRKT-POLE-S
- ZLX 8" models
- EKX 12" models
- ELX 12" models
- ELX200 10" models
- ETX-10P
- ETX-12P
- EVERSE 8
- EVERSE 12
- PX1122M
- SX 12" models
- ZX1, ZXA1

BRKT-POLE-L
- ZLX 8" models
- ZLX 12" models
- ZLX 15" models
- EKX 12" models
- EKX 15" models
- ELX 12" models
- ELX 15" models
- ELX200 10" models
- ELX200 12" models
- ELX200 15" models
- ETX-10P
- ETX-12P
- ETX-15P
- EVERSE 8
- EVERSE 12
- PX1122M
- PX1152M
- PXM-12MP
- QRx 112/75
- QRx 115/75
- SX 12" models
- TX1122
- TX1152
- ZX1, ZXA1
- ZX3
- ZX4, ZX5, ZXA5

SPECIFICATIONS

BRKT-POLE-S BRKT-POLE-L
Color Black Black
Dimensions (H x W x D) (mm) 250 mm x 115.8 mm x 215.9 mm 250 mm x 115.8 mm x 317.5 mm
Dimensions (H x W x D) (in) 9.84 in x 4.56 in x 8.50 in 9.84 in x 4.56 in x 12.5 in
Shipping dimensions (H x W x D) (mm) 295 mm x 265 mm x 85 mm 385 mm x 265 mm x 85 mm
Shipping dimensions (H x W x D) (in) 11.61 in x 10.43 in x 3.35 in 15.16 in x 10.43 in x 3.35 in
Working load limit (kg)1 34.1 kg 34.1 kg
Working load limit (lb)1 75 lb 75 lb
Weight (g) 1,78 kg 2,02 kg
Weight (lb) 3,92 lb 4,45 lb
Shipping weight (g) 1,94 kg 2,22 kg
Shipping weight (lb) 4,28 lb 4,89 lb
