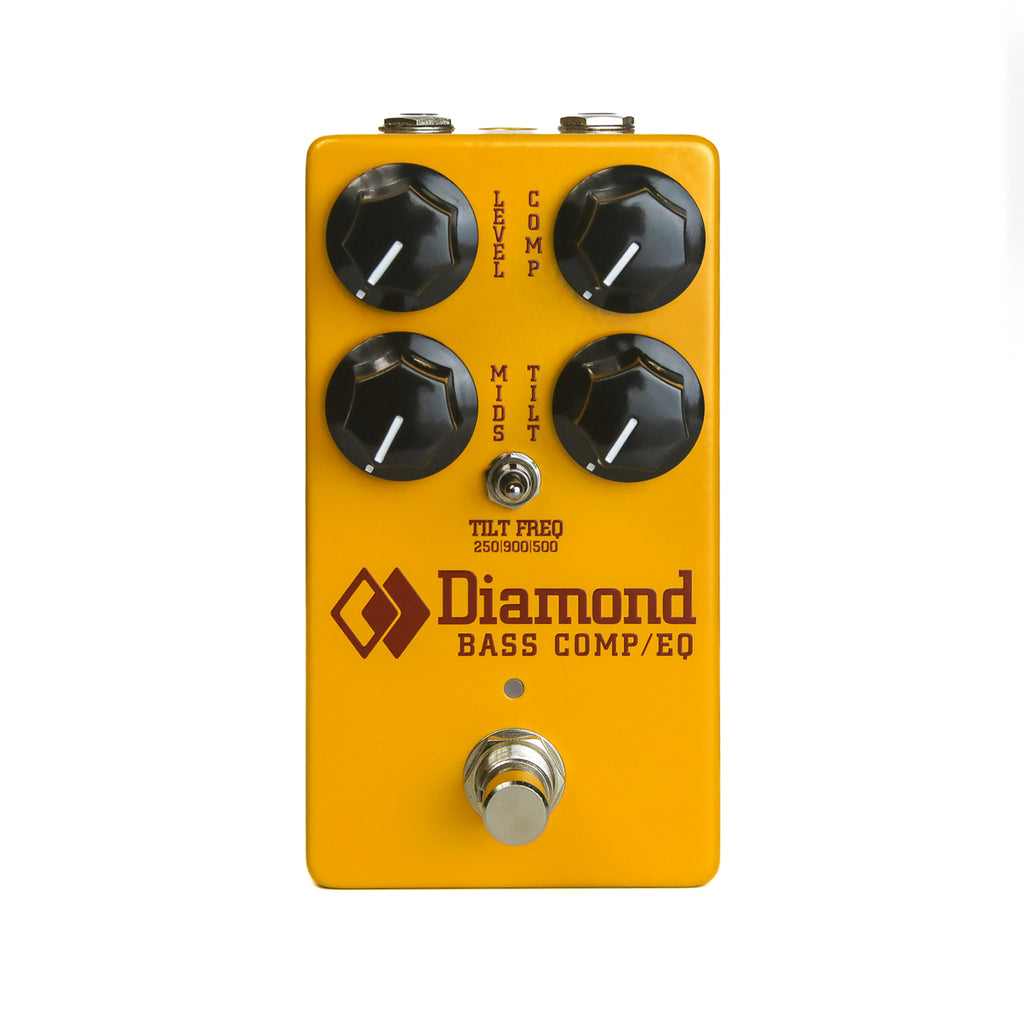

Diamond Guitar Pedals Bass Comp/EQ Optical Compressor/EQ Pedal

The tone of the room

Built for the next great performance

Thoughtful instruments, considered details, and a sound that feels entirely your own.

Explore the collection

Rik Emmett Signature Godin Premiere

$335.00
Shipping calculated at checkout.

Reliable shipping

Flexible returns

Sought out by musicians for almost two decades, the Diamond Compressor is the magical yellow box that started it all. This next generation Diamond Comp|EQ maintains the classic circuit architecture while increasing range and functionality. In addition to providing compression, the Diamond Comp|EQ is armed with their classic Tilt-EQ tone control and an active Mid Boost|Cut circuit set at the Tilt's center frequency. A new Attack toggle provides the original Diamond snappy response or a softer, more transparent compressor feel.

Place the COMP|EQ either as the first pedal in your effect chain or very close to first for a traditional compression effects. Place it at the end of your chain and the COMP|EQ will act as a limiter. The COMP/EQ can also be used as a boost or tone shaping tool placed before or after drives & fuzzes with the COMP knob turned down low. Use it to even out your tone, add sustain, increase gain or carefully sculpt and EQ your signal. The Diamond COMP|EQ is the perfect mastering solution for your pedalboard.

Main Features

• Naturally smooth optical compression from a custom US-made Opto-Isolator
• Mid boost and cut
• Switchable Tilt EQ Fulcrum Frequency covering 250, 500 & 900 Hz +|- 6dB
• Wide-ranging compression control and attack switch with LED indicator

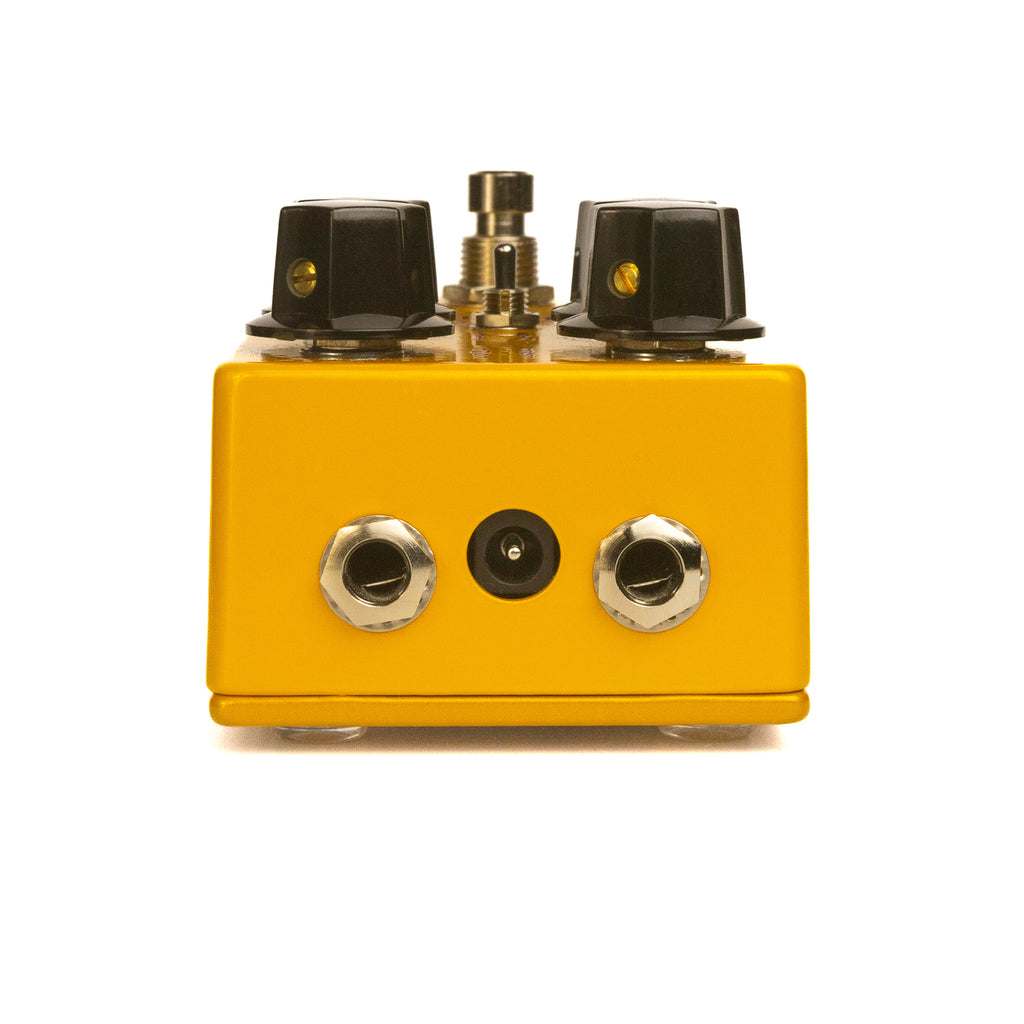

• Top-mounted jacks and soft touch relay switching
• Burr Brown Integrated circuits

Specifications

Input Impedance: > 1MΩ
Output Impedance: < 10KΩ
Switching: Relay True Bypass
Power Requirement: 9-18 VDC , negative tip, 2.1 mm barrel jack
Current Draw @ 9 VDC: 22mA
Tilt EQ Fulcrum Frequency: 250 / 500 / 900 Hz +|- 6 dB
Mid EQ Center Frequency: 800 Hz +|- 10 dB
Dimensions: 122 x 66.98 x 39.64mm (4.8 x 2.64 x 1.58")
Weight: 280 g
Made in Canada
